UniPlay Stenshuvud
8112840

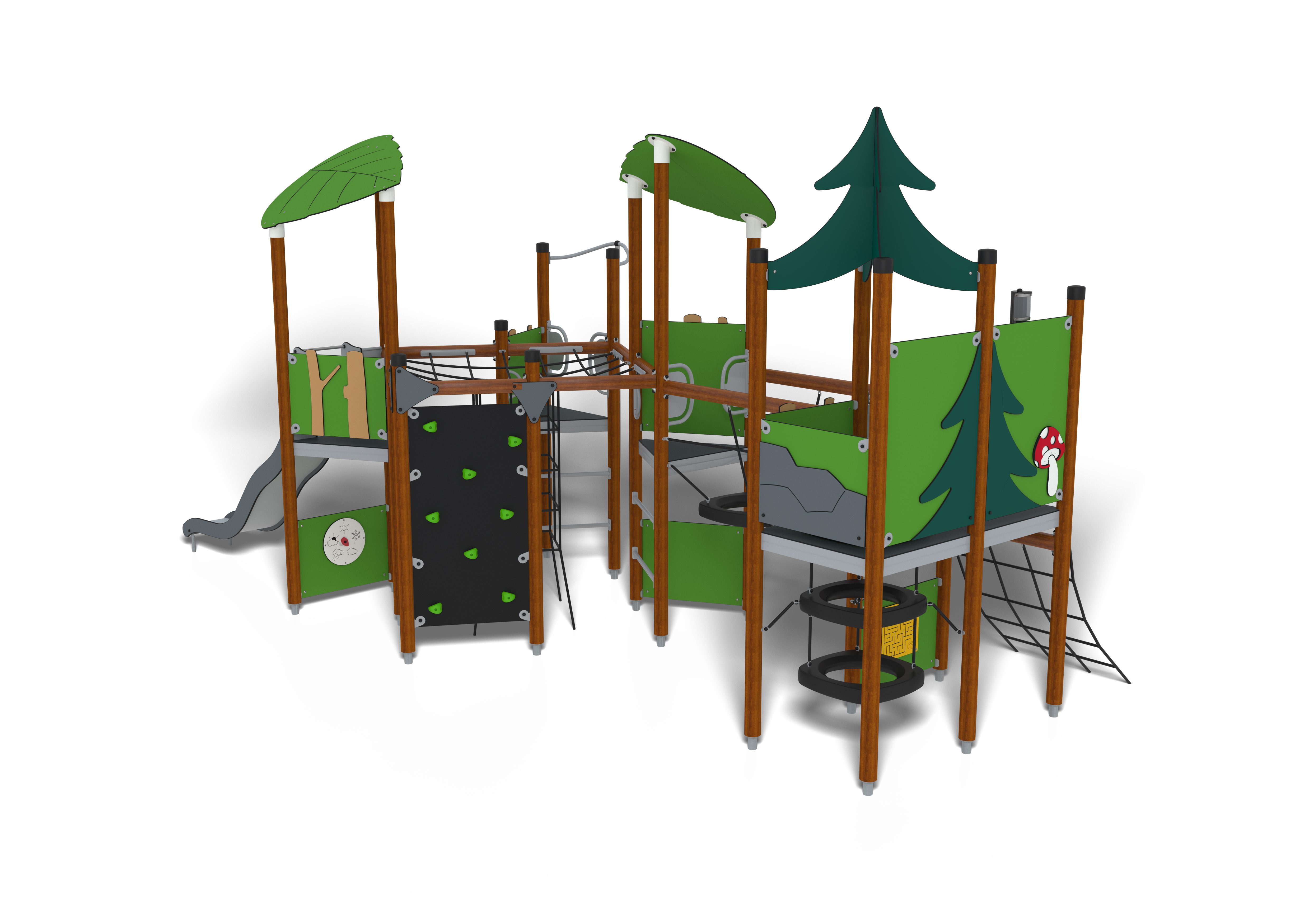

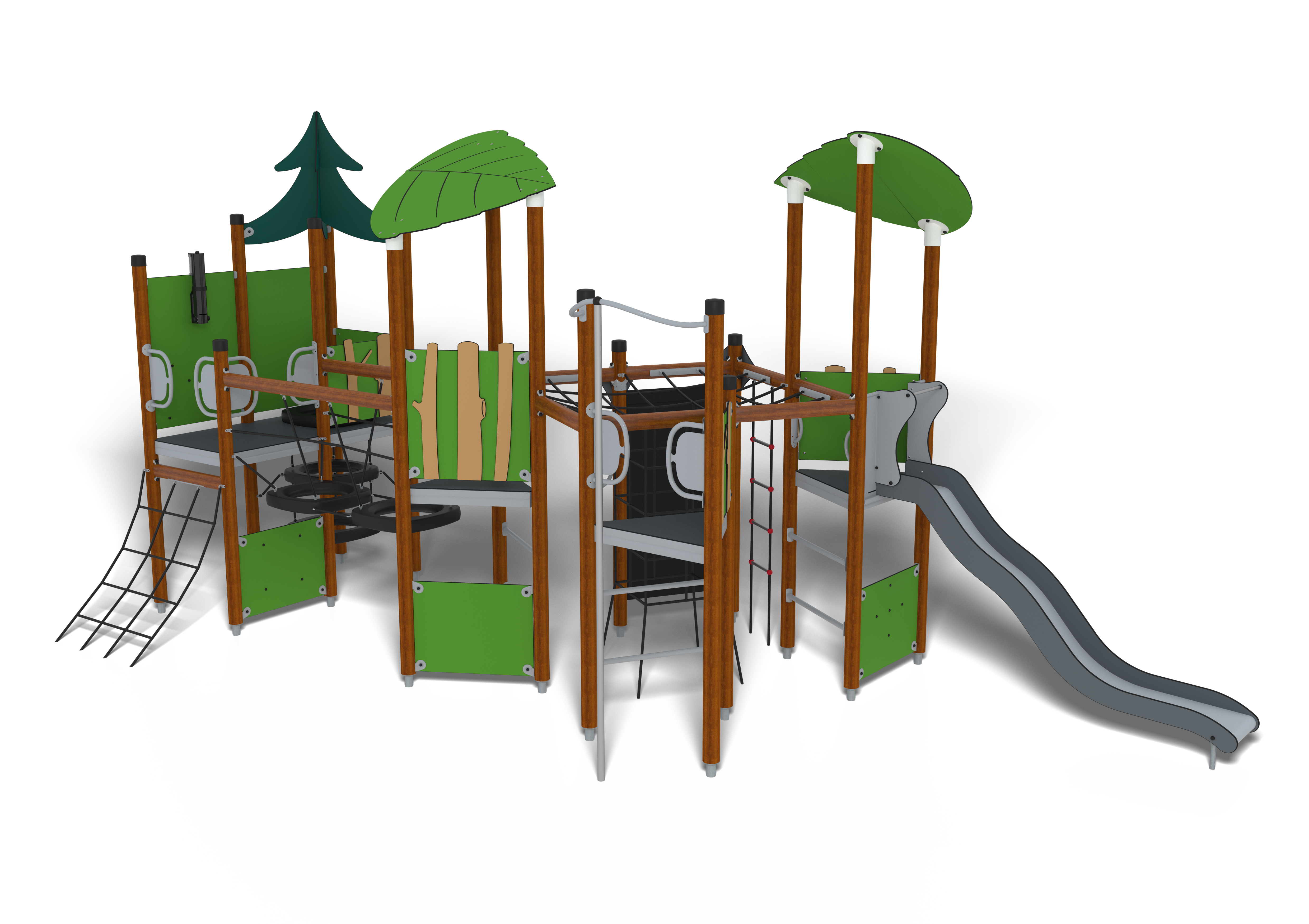

The UniPlay Stenshuvud is an adventurous forest-themed play unit designed for young people, offering a wide range of exciting play experiences. It features climbing nets, walls, and ramps, a rope bridge, a fun wobble bridge, and a thrilling slide - all topped with playful leaf and tree-shaped roofs. With interactive play elements, it encourages physical activity, creativity, and social engagement in a dynamic, nature-inspired setting.
Sunken Foundation
Wooden Post - Wooden Posts / HPL Panels - Green
- Significant challenge
- Ground level access
- Passive access
- Multi-sensory
- Sight not required
- Hearing not required
- Low cognitive demand
- Adult accessible
- Calming
- Solitary Play
Physical
-
Sliding
-
Swinging / Rocking
-
Climbing Playground Equipment
-
Crawling
-
Balancing
-
Jumping / Bouncing
-
Hanging
(from the arms) -
Pointing and touching
Social
-
Cooperating
-
Sharing
-
Communicating
-
Turn-taking
-
Competing
Cognitive
-
Problem solving
-
Concentrating
-
Planning / Tactics
Creative
-
Imagining / Storytelling
| Assembly Time | 52 hours |

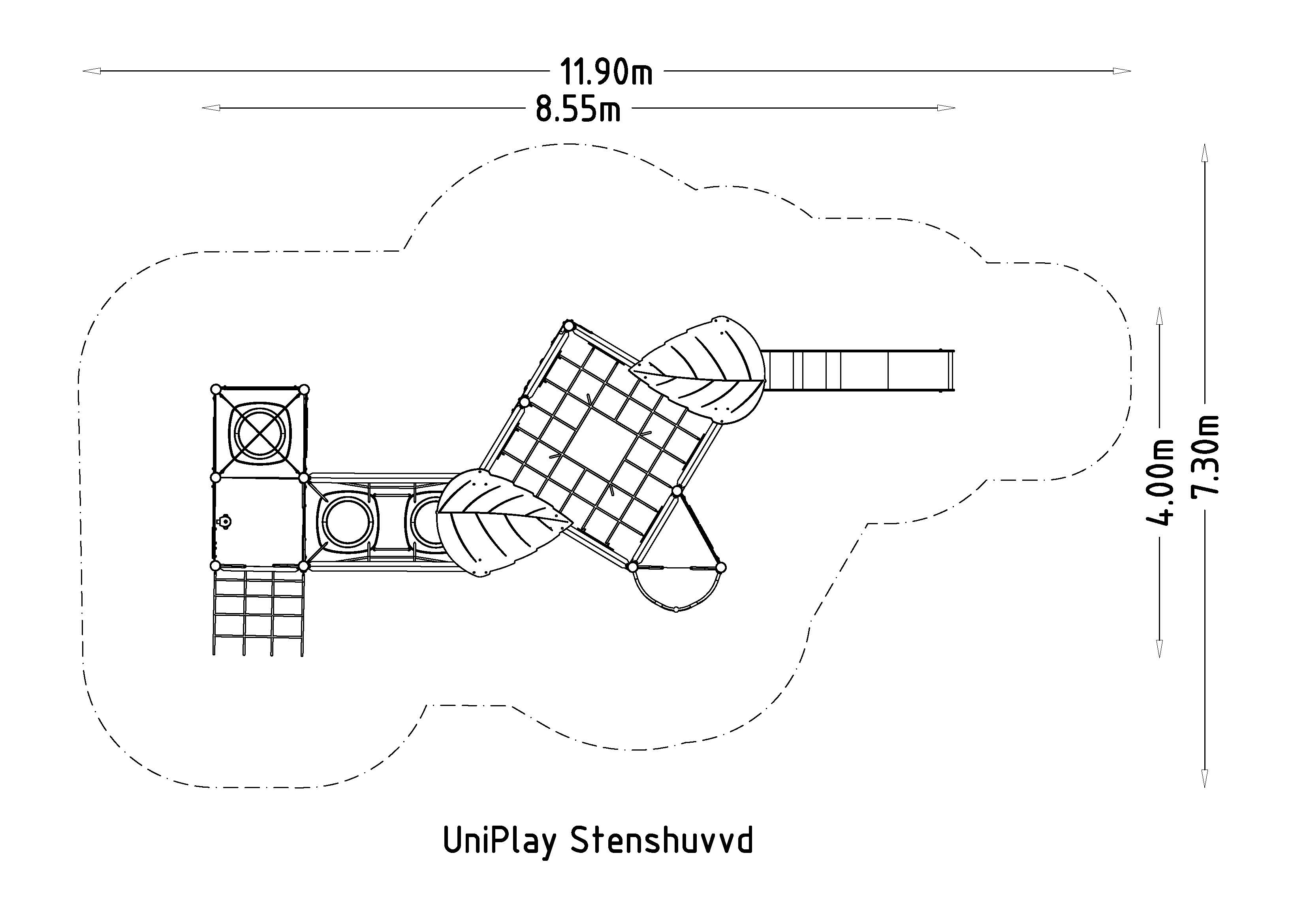

| Length | 8550 mm |
| Width | 4000 mm |

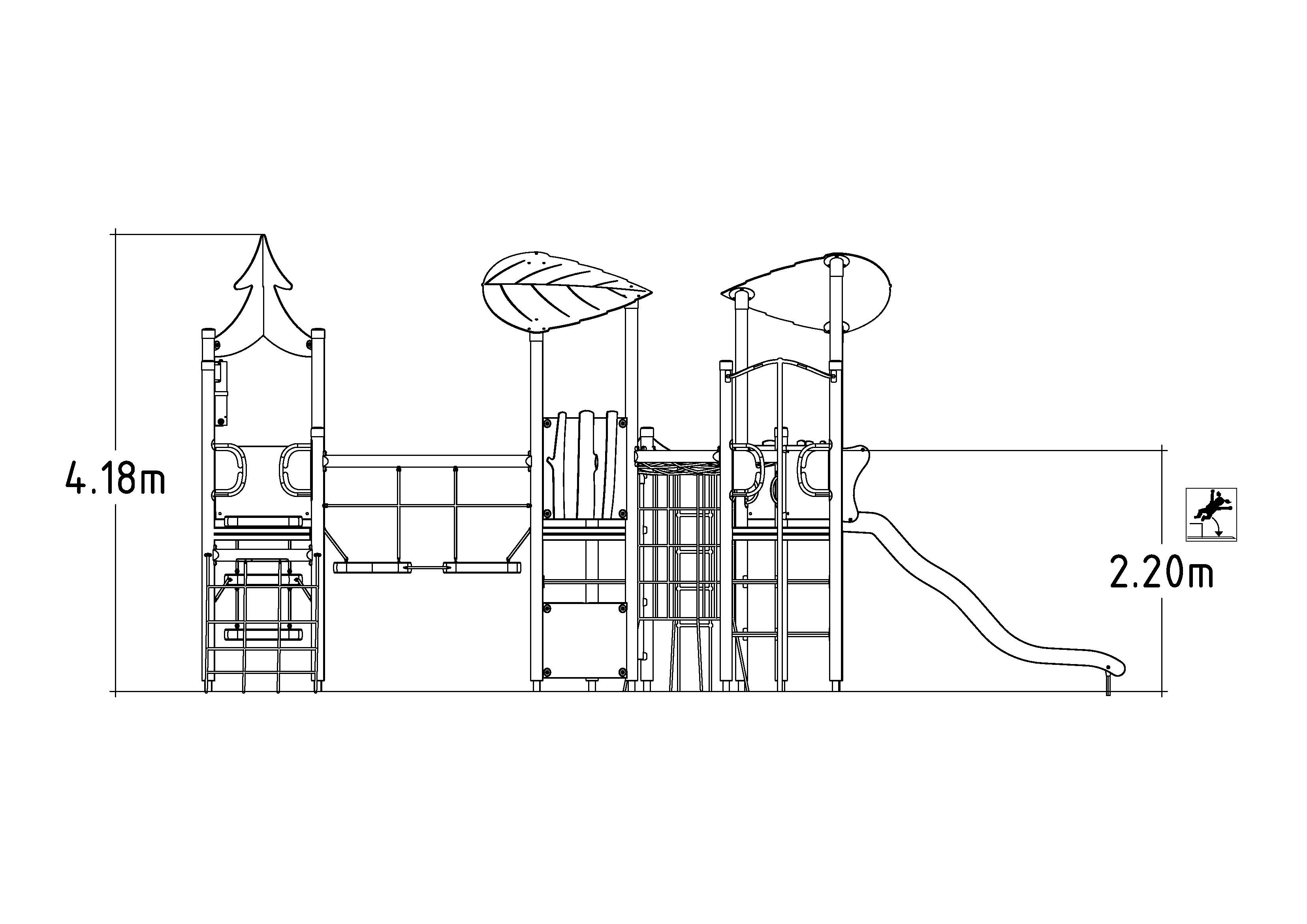

| Height | 4180 mm |
| Net Weight | 1 856,42 kg |
| Fall Height | 2200 mm |
| Safety Area Width | 7300 mm |
| Safety Area Length | 11900 mm |
| Safety Area | 61 m² |
| Material Name | kg | % | Recycled | Recyclable | Renewable |
|---|---|---|---|---|---|
| Aluminum | 26.319 | 1.42 | 24% | 100% | 0% |
| Cardboard | 0.91 | 0.05 | 100% | 100% | 100% |
| Concrete | 331.33 | 17.85 | 0% | 0% | 0% |
| Fibreboard | 7.128 | 0.38 | 90% | 100% | 100% |
| HPL | 345.304 | 18.6 | 66% | 0% | 66%* |
| Pine | 418.631 | 22.55 | 0% | 100% | 100% |
| Plywood | 228.375 | 12.3 | 0% | 100% | 100% |
| Polyacetal (POM) | 1.14 | 0.06 | 10% | 100% | 0% |
| Polyamide (PA) | 4.17 | 0.22 | 0% | 100% | 0% |
| Polycarbonate (PC) | 0.493 | 0.03 | 0% | 100% | 0% |
| Polyester | 2.88 | 0.16 | 0% | 0% | 0% |
| Polyethylene (PE) | 20.777 | 1.12 | 100% | 100% | 0% |
| Polymethyl methacrylate (PMMA) | 0.176 | 0.01 | |||
| Polyurethane solid (PUR) | 5.394 | 0.29 | 0% | 0% | 0% |
| Powder coating polyester | 7.224 | 0.39 | 0% | 0% | 0% |
| Stainless steel | 11.369 | 0.61 | 0% | 0% | 0% |
| Untreated Steel | 412.18 | 22.2 | 69% | 100% | 0% |
| Wet paint for wood | 26.158 | 1.41 | 0% | 0% | 0% |
| Zink (electro-galvanised) | 0.106 | 0.01 | 0% | 100% | 0% |
| Zink (hot-galvanised) | 6.357 | 0.34 | 70% | 100% | 0% |
| 1856 kg | 100% |
*Renewable % of the HPL core is made out of paper and is biodegradable
Recycled: Made from materials that have been processed and reused instead of discarded.
Recyclable: Can be collected, processed, and turned into new products instead of becoming waste.
Renewable: Comes from natural sources that can replenish over time such as sustainably harvested wood.
Transparency is key for HAGS. Our materials come from various suppliers, therefore the Recycled, Recyclable, and Renewable percentages are shown as the maximum possible values used in the materials. As we source more sustainable materials, these numbers will change.
