UniPlay Bondekrok
8107587

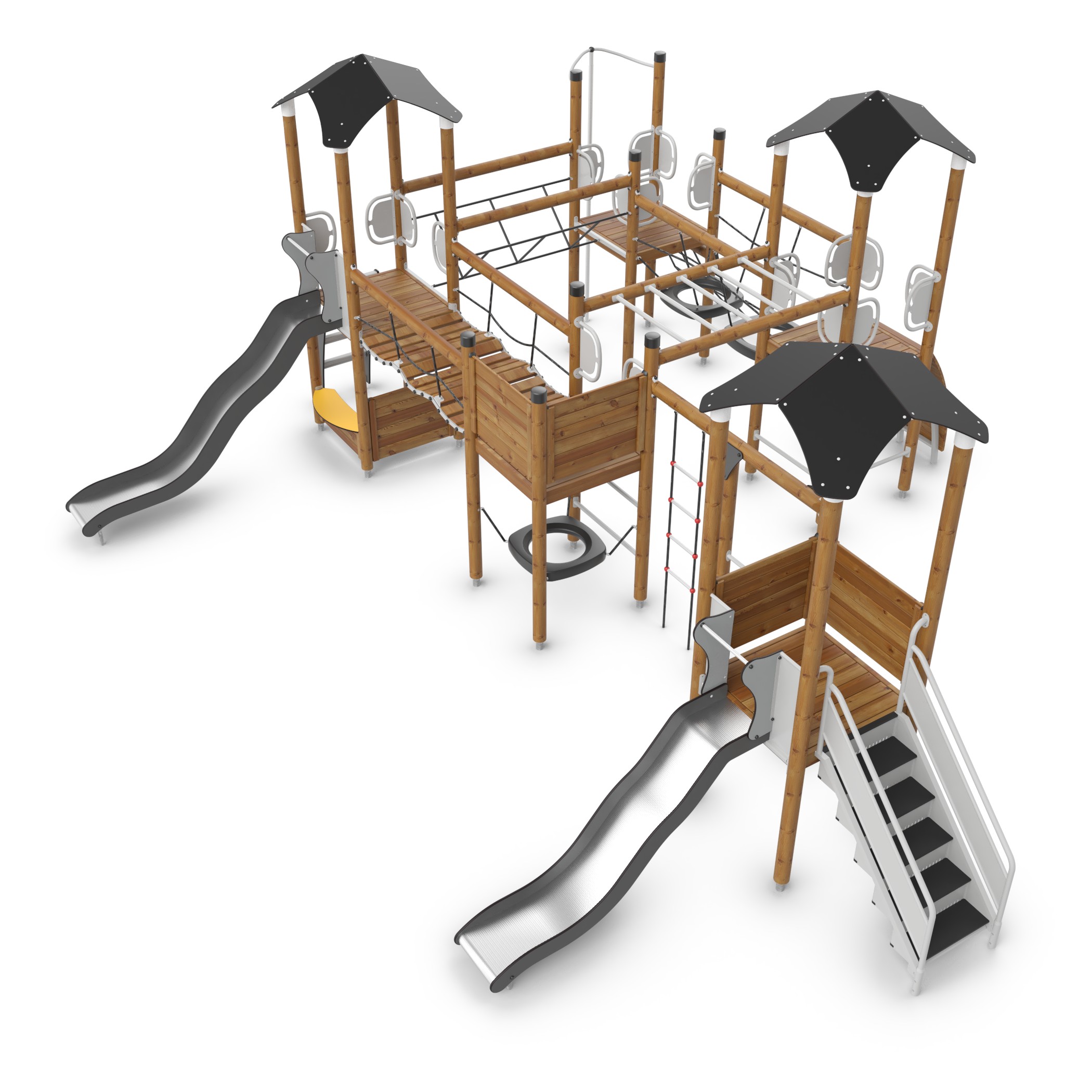

UniPlay Bondekrok is a versatile and challenging playground unit designed for children aged 5–12, featuring five towers connected by a variety of bridge links, including a traverse link for added adventure. Access points include climbing elements, a ramp, a ladder, and easy-access steps to support inclusive play.The unit offers two exciting slides—a wavy slide and a straight one - plus a sliding pole for quick getaways. Three of the towers are roofed for shelter and shade, while the entire structure is beautifully finished in natural wood, blending seamlessly into outdoor environments. Bondekrok encourages active, imaginative, and social play at every level. This variant is barkbrown and has loose fill foundation anchoring.
Loose Fill
Wooden Post - Wooden Posts / Wooden Panels - Barkbrown
- Significant challenge
- Ground level access
- Passive access
- Multi-sensory
- Sight not required
- Hearing not required
- Low cognitive demand
- Adult accessible
- Calming
- Solitary Play
Physical
-
Sliding
-
Swinging / Rocking
-
Climbing Playground Equipment
-
Balancing
-
Jumping / Bouncing
-
Walking and running
-
Hanging
(from the arms) -
Pointing and touching
Social
-
Cooperating
-
Sharing
-
Communicating
-
Turn-taking
Cognitive
-
Concentrating
-
Planning / Tactics
Creative
-
Imagining / Storytelling
| Assembly Time | 75.46 hours |
| Length | 7650 mm |
| Width | 8700 mm |
| Height | 3750 mm |
| Net Weight | 2 206,35 kg |
| Fall Height | 2400 mm |

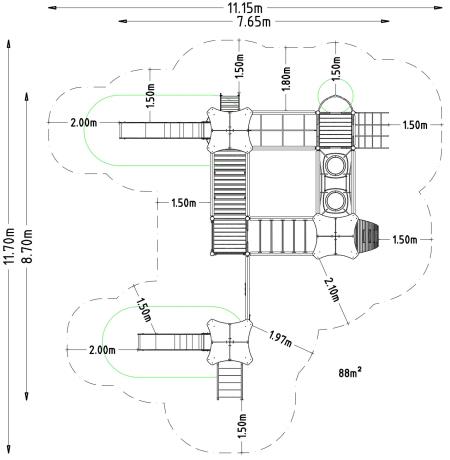

| Safety Area Width | 11150 mm |
| Safety Area Length | 11700 mm |
| Safety Area | 88 m² |
| Material Name | kg | % | Recycled | Recyclable | Renewable |
|---|---|---|---|---|---|
| Aluminum | 30.126 | 1.37 | 24% | 100% | 0% |
| Cardboard | 0.91 | 0.04 | 100% | 100% | 100% |
| Concrete | 382.2 | 17.32 | 0% | 0% | 0% |
| HPL | 149.942 | 6.8 | 66% | 0% | 66%* |
| Pine | 716.62 | 32.48 | 0% | 100% | 100% |
| Polyacetal (POM) | 0.48 | 0.02 | 10% | 100% | 0% |
| Polyamide (PA) | 5.888 | 0.27 | 0% | 100% | 0% |
| Polyethylene (PE) | 29.72 | 1.35 | 100% | 100% | 0% |
| Polypropylene (PP) | 1.558 | 0.07 | 0% | 0% | 0% |
| Polyurethane foam/flex | 0.28 | 0.01 | 0% | 0% | 0% |
| Polyurethane solid (PUR) | 2.939 | 0.13 | 0% | 0% | 0% |
| Powder coating polyester | 10.034 | 0.45 | 0% | 0% | 0% |
| Stainless steel | 19.503 | 0.88 | 0% | 0% | 0% |
| Thermo plastic elastomer (TPE) | 1.854 | 0.08 | 0% | 0% | 0% |
| Untreated Steel | 787.433 | 35.69 | 69% | 100% | 0% |
| Wet paint for wood | 58.367 | 2.65 | 0% | 0% | 0% |
| Zink (electro-galvanised) | 0.304 | 0.01 | 0% | 100% | 0% |
| Zink (hot-galvanised) | 8.196 | 0.37 | 70% | 100% | 0% |
| 2206 kg | 100% |
*Renewable % of the HPL core is made out of paper and is biodegradable
Recycled: Made from materials that have been processed and reused instead of discarded.
Recyclable: Can be collected, processed, and turned into new products instead of becoming waste.
Renewable: Comes from natural sources that can replenish over time such as sustainably harvested wood.
Transparency is key for HAGS. Our materials come from various suppliers, therefore the Recycled, Recyclable, and Renewable percentages are shown as the maximum possible values used in the materials. As we source more sustainable materials, these numbers will change.
