UniMini Ryl
8051850

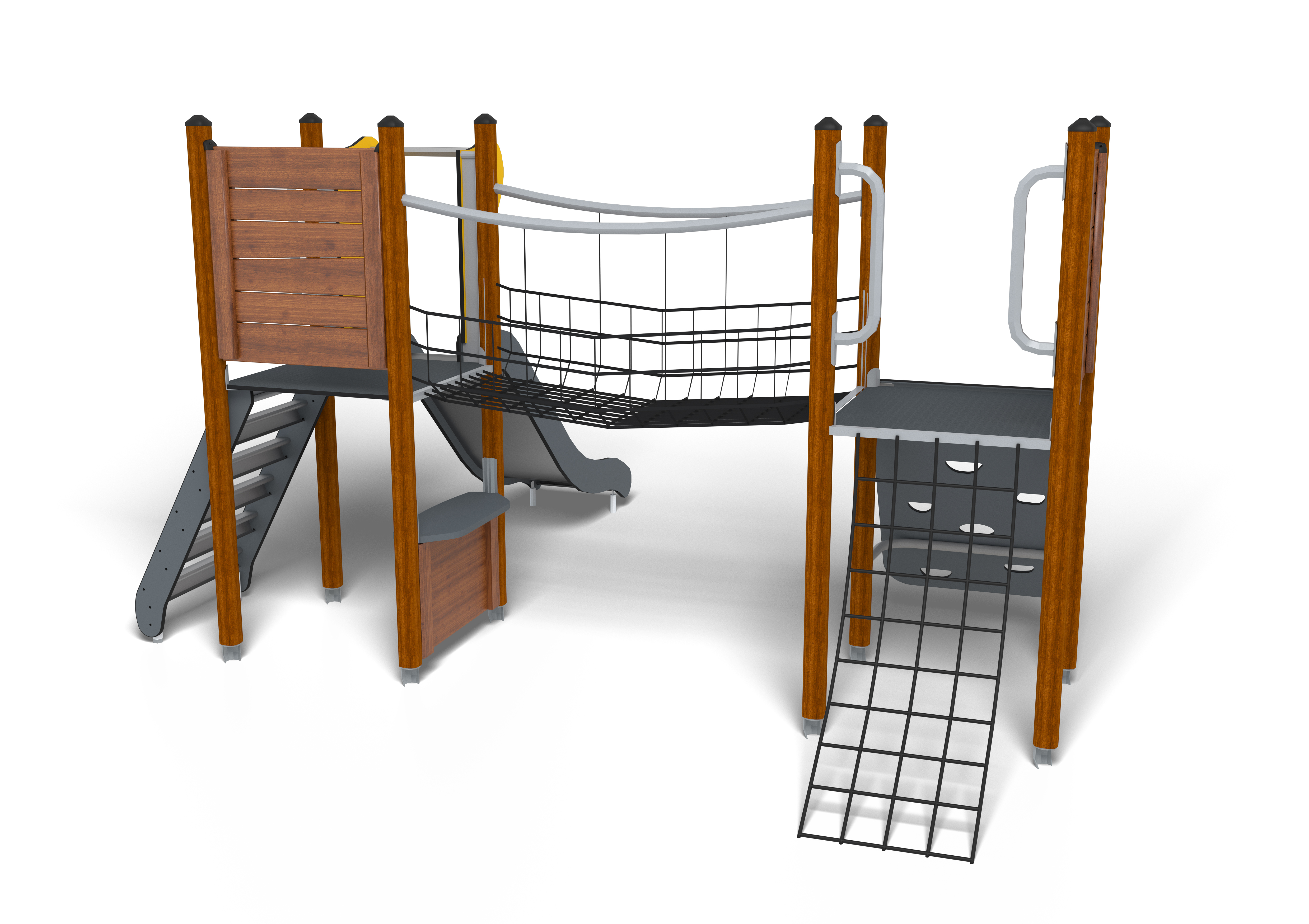

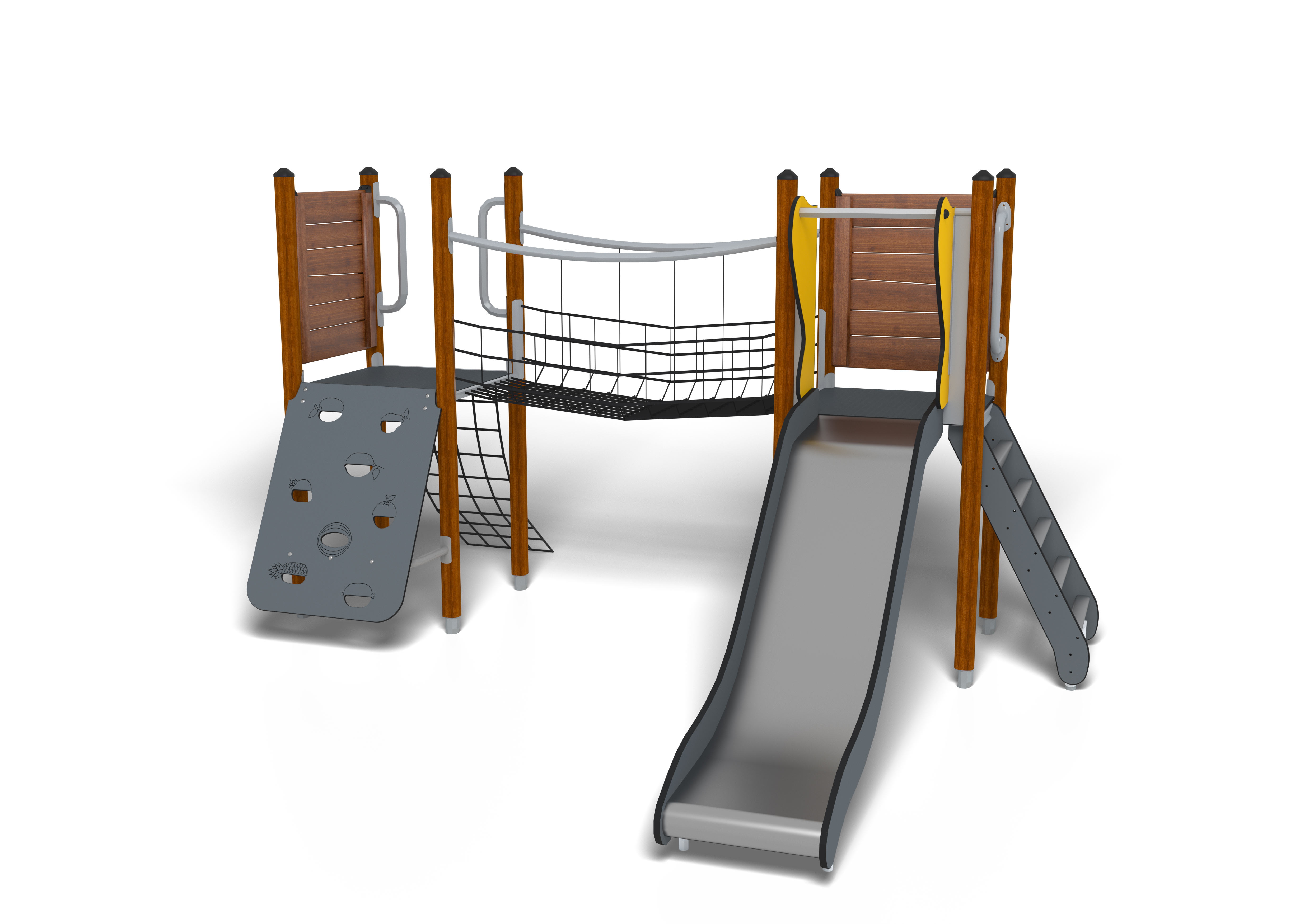

UniMini Ryl, a compact and versatile multiplay structure designed to provide an exciting and engaging play experience for children. With its two towers, stairs, slide, rope bridge, rope climb, and play counter, UniMini Ryl offers a range of play features that promote physical activity, social interaction, and imaginative play.
Essentials
- Significant challenge
- Ground level access
- Passive access
- Multi-sensory
- Sight not required
- Hearing not required
- Low cognitive demand
- Adult accessible
- Calming
- Solitary Play
Physical
-
Swinging / Rocking
-
Climbing
-
Crawling
-
Balancing
-
Jumping / Bouncing
-
Walking and running
-
Hanging
(from the arms) -
Pointing and touching
Social
-
Cooperating
-
Sharing
-
Communicating
-
Turn-taking
-
Competing
Cognitive
-
Problem solving
-
Concentrating
-
Remembering
-
Planning / Tactics
Creative
-
Imagining / Storytelling
| Age Range | 2-5 |
| Assembly Time | 15.78 hours |

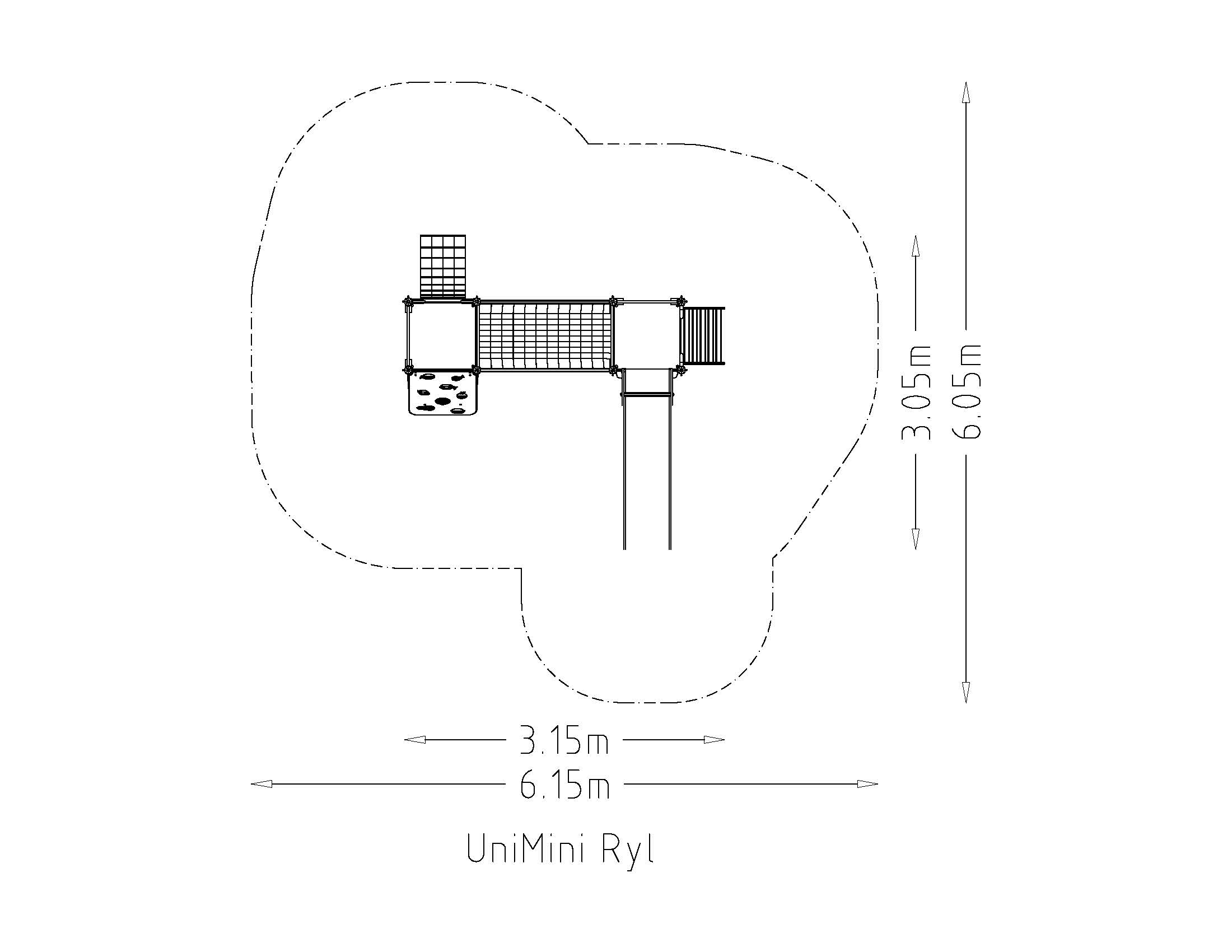

| Length | 3150 mm |
| Width | 3050 mm |

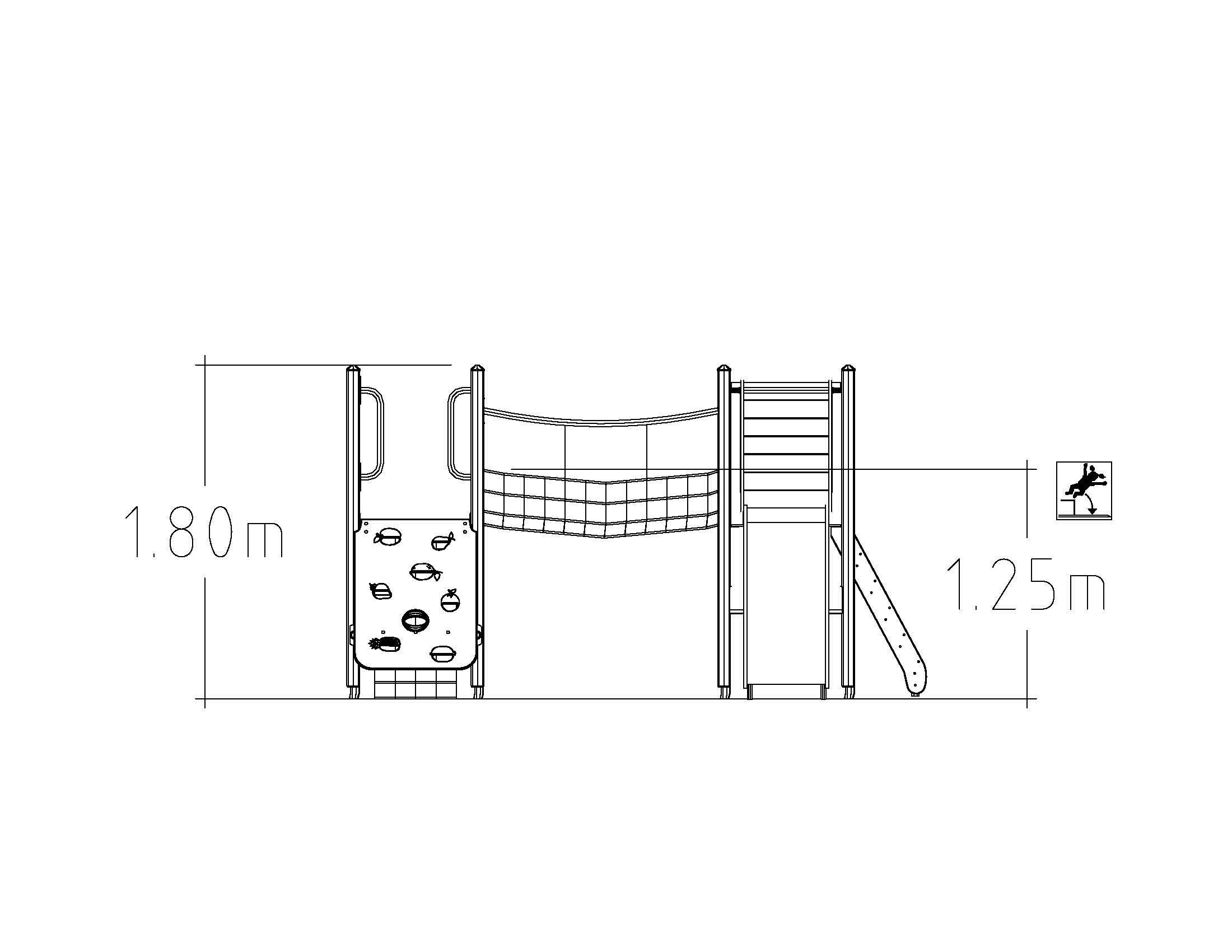

| Height | 1800 mm |
| Net Weight | 218,46 kg |
| Volume (m3) | 1.5 m³ |
| Fall Height | 1250 mm |
| Safety Area Width | 6050 mm |
| Safety Area Length | 6150 mm |
| Safety Area | 28 m² |
| Material Name | kg | % | Recycled | Recyclable | Renewable |
|---|---|---|---|---|---|
| Aluminum | 2.465 | 0.72 | 24% | 100% | 0% |
| Fibreboard | 2.568 | 0.75 | 90% | 100% | 100% |
| HPL | 88.455 | 25.83 | 66% | 0% | 66%* |
| Pine | 97.965 | 28.61 | 0% | 100% | 100% |
| Polyamide (PA) | 0.89 | 0.26 | 0% | 100% | 0% |
| Polyester | 2.88 | 0.84 | 0% | 0% | 0% |
| Polyethylene (PE) | 0.486 | 0.14 | 100% | 100% | 0% |
| Polyurethane solid (PUR) | 3.357 | 0.98 | 0% | 0% | 0% |
| Powder coating polyester | 1.555 | 0.45 | 0% | 0% | 0% |
| Stainless steel | 4.435 | 1.3 | 0% | 0% | 0% |
| Stainless steel EN 1.4301 | 7.72 | 2.25 | 85% | 100% | 0% |
| Untreated Steel | 123.036 | 35.93 | 69% | 100% | 0% |
| Wet paint for wood | 5.05 | 1.47 | 0% | 0% | 0% |
| Zink (electro-galvanised) | 0.118 | 0.03 | 0% | 100% | 0% |
| Zink (hot-galvanised) | 1.431 | 0.42 | 70% | 100% | 0% |
| 342 kg | 100% |
*Renewable % of the HPL core is made out of paper and is biodegradable
Recycled: Made from materials that have been processed and reused instead of discarded.
Recyclable: Can be collected, processed, and turned into new products instead of becoming waste.
Renewable: Comes from natural sources that can replenish over time such as sustainably harvested wood.
Transparency is key for HAGS. Our materials come from various suppliers, therefore the Recycled, Recyclable, and Renewable percentages are shown as the maximum possible values used in the materials. As we source more sustainable materials, these numbers will change.
