Obstacle Course Over and Under
8072194

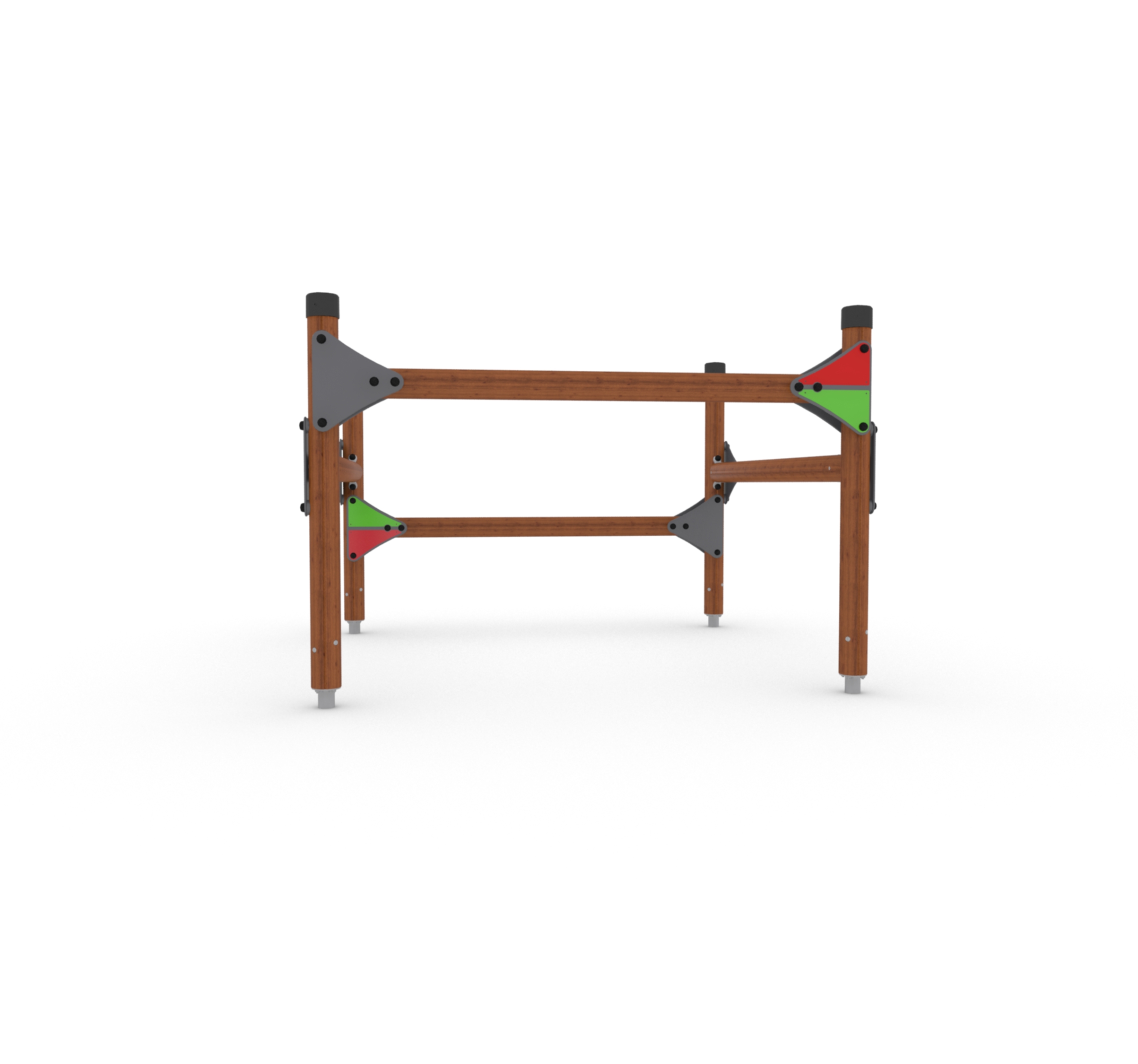

The HAGS Over and Under Hurdle, part of the UniPlay Obstacle Course range, tests children’s agility as they jump over and crawl under, each movement requiring a different technique. With both easy and challenging levels, kids can start with the basics and advance to tougher skills as they go. Perfect for parks, schools, and playgrounds, the Over and Under Hurdle can be combined with other UniPlay Obstacle Course elements to create a custom trail that promotes speed, coordination, and friendly competition. This variant is bark brown.
Cast In Place
Wooden Post - Bark Brown -
| Age Range | 7+ |
| Assembly Time | 4 hours |
| Length | 2170 mm |
| Width | 2170 mm |

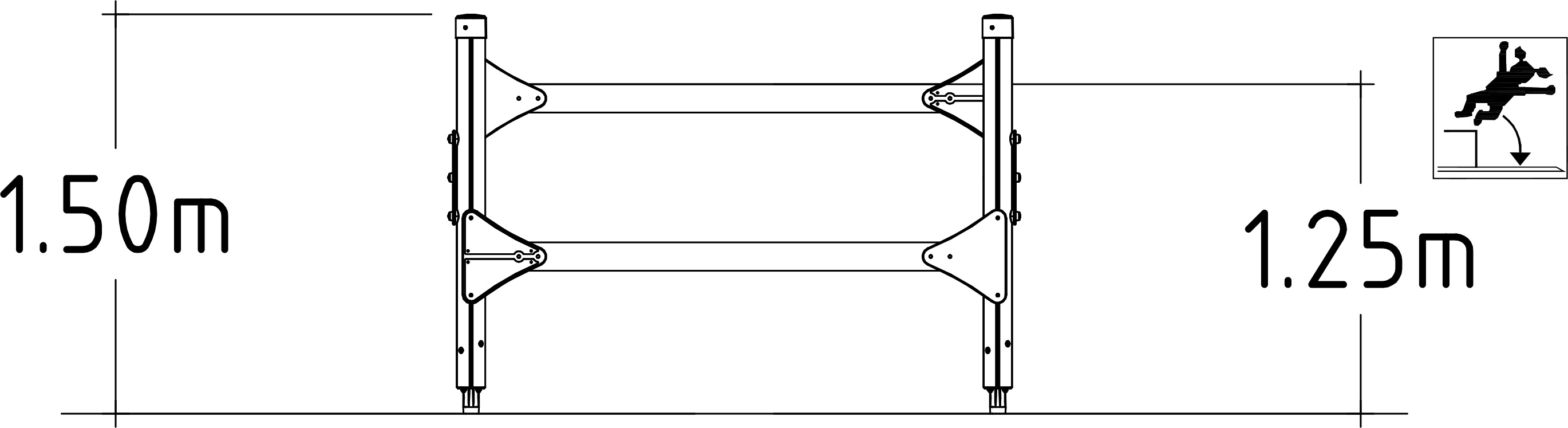

| Height | 1515 mm |
| Net Weight | 128,54 kg |
| Fall Height | 1250 mm |

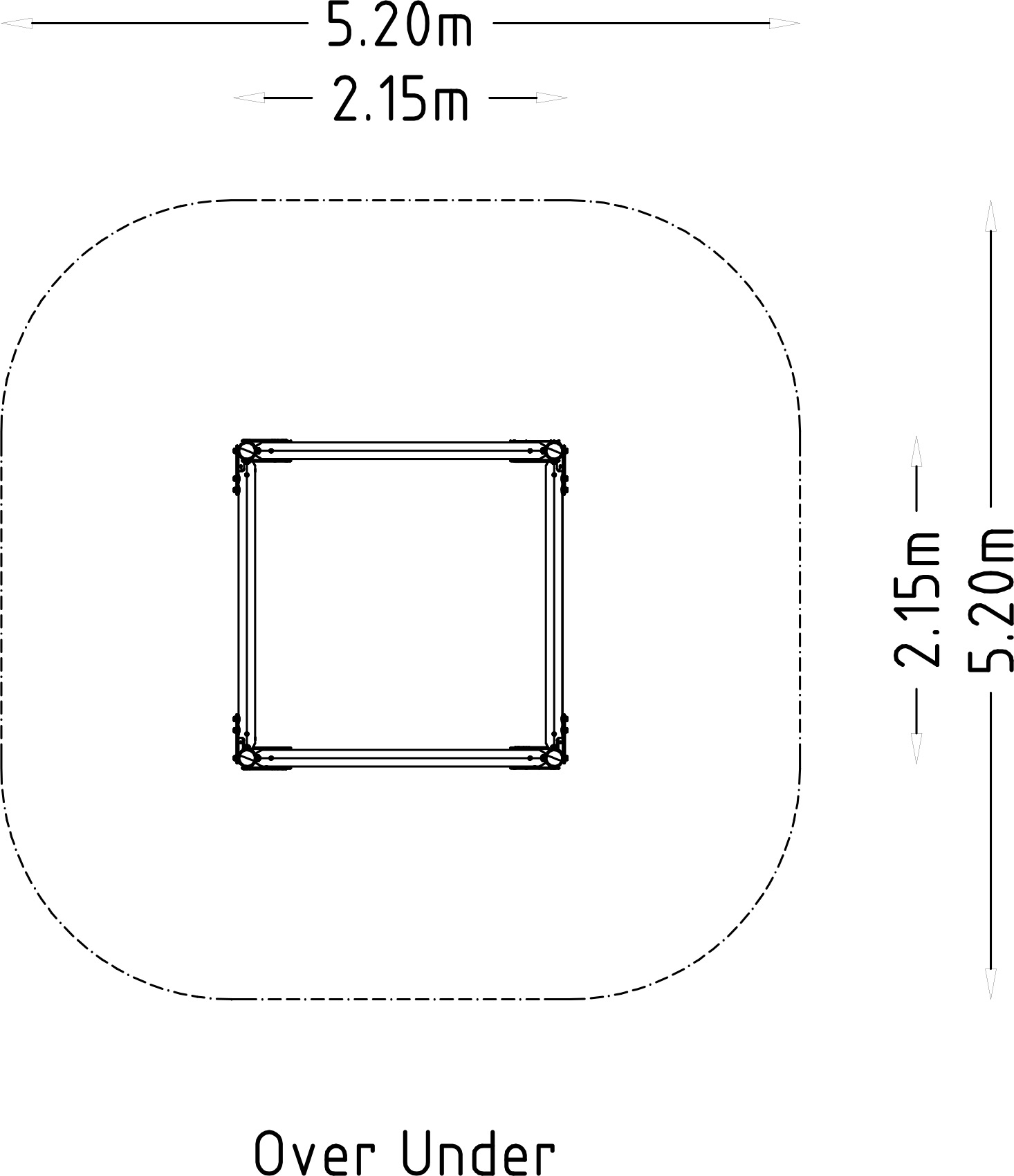

| Safety Area Width | 5200 mm |
| Safety Area Length | 5200 mm |
| Safety Area | 27 m² |
| Material Name | kg | % | Recycled | Recyclable | Renewable |
|---|---|---|---|---|---|
| HPL | 14.112 | 13.99 | 66% | 0% | 66%* |
| Pine | 57.707 | 57.2 | 0% | 100% | 100% |
| Polyamide (PA) | 1.92 | 1.9 | 0% | 100% | 0% |
| Polyethylene (PE) | 0.02 | 0.02 | 100% | 100% | 0% |
| Powder coating polyester | 0.542 | 0.54 | 0% | 0% | 0% |
| Untreated Steel | 22.33 | 22.13 | 69% | 100% | 0% |
| Wet paint for wood | 4.058 | 4.02 | 0% | 0% | 0% |
| Zink (electro-galvanised) | 0.026 | 0.03 | 0% | 100% | 0% |
| Zink (hot-galvanised) | 0.168 | 0.17 | 70% | 100% | 0% |
| 101 kg | 100% |
*Renewable % of the HPL core is made out of paper and is biodegradable
Recycled: Made from materials that have been processed and reused instead of discarded.
Recyclable: Can be collected, processed, and turned into new products instead of becoming waste.
Renewable: Comes from natural sources that can replenish over time such as sustainably harvested wood.
Transparency is key for HAGS. Our materials come from various suppliers, therefore the Recycled, Recyclable, and Renewable percentages are shown as the maximum possible values used in the materials. As we source more sustainable materials, these numbers will change.
