UniPlay Pieljekajse
8112819
The UniPlay Pieljekajse is an exciting, forest-themed play unit designed for young adventurers, offering endless play opportunities. It features a climbing net and ramp, a fun crawling tube, and a double-width slide. The highlight is its impressive high treehouse tower with tall spire roofs and a thrilling tube slide. With interactive play elements throughout, it inspires active, imaginative, and social play in a dynamic, nature-inspired setting.
Sunken Foundation
Wooden Post - Wooden Posts / HPL Panels - Green
Physical
-
Sliding
-
Climbing
-
Jumping / Bouncing
-
Hanging
(from the arms) -
Pointing and touching
Social
-
Cooperating
-
Sharing
-
Communicating
-
Turn-taking
-
Competing
Cognitive
-
Playing with mathematical concepts
-
Problem solving
-
Concentrating
-
Planning / Tactics
Creative
-
Sound making
-
Imagining / Storytelling
| Assembly Time | 145 hours |

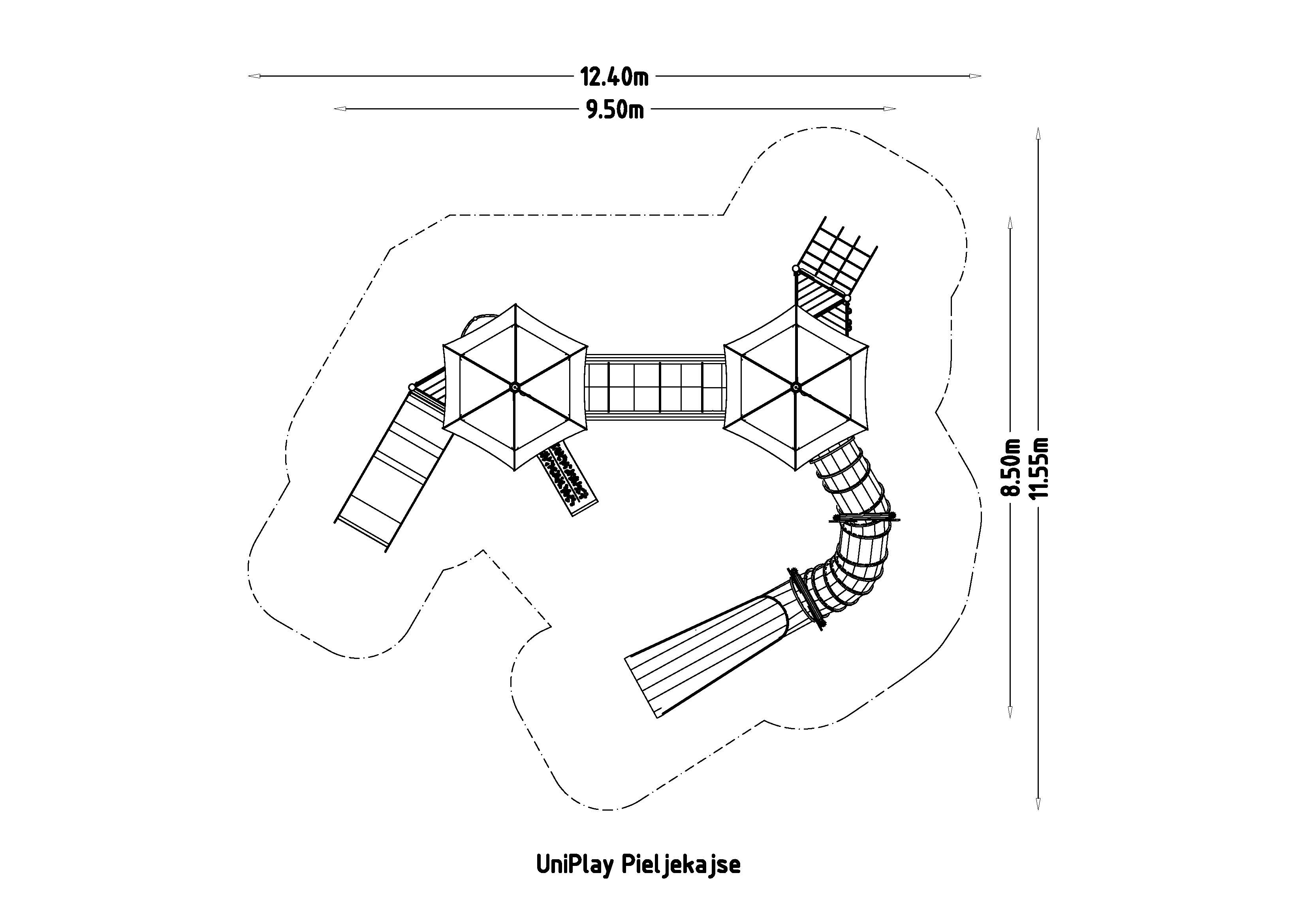

| Length | 9500 mm |
| Width | 8500 mm |

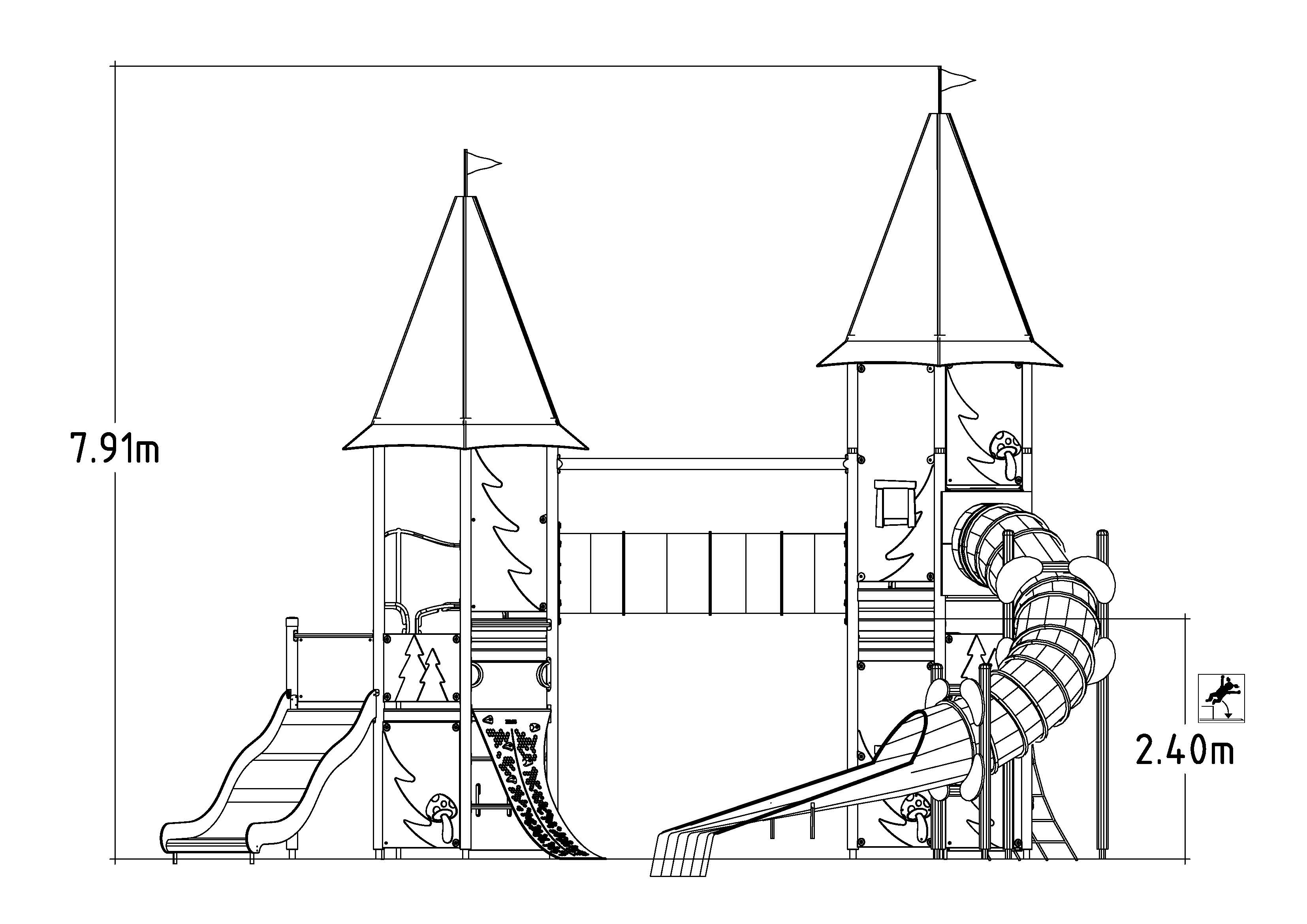

| Height | 7910 mm |
| Net Weight | 2 547,54 kg |
| Fall Height | 2400 mm |
| Safety Area Width | 11550 mm |
| Safety Area Length | 12400 mm |
| Safety Area | 93 m² |
| Material Name | kg | % | Recycled | Recyclable | Renewable |
|---|---|---|---|---|---|
| Aluminum | 20.557 | 0.81 | 24% | 100% | 0% |
| Cardboard | 0.91 | 0.02 | 100% | 100% | 100% |
| Concrete | 443.13 | 17.44 | 0% | 0% | 0% |
| HPL | 626 | 24.64 | 66% | 0% | 66%* |
| Pine | 513 | 20.19 | 0% | 100% | 100% |
| Plywood | 13 | 0.51 | 0% | 100% | 100% |
| Polyamide (PA) | 7.47 | 0.29 | 0% | 100% | 0% |
| Polycarbonate (PC) | 9.337 | 0.37 | 0% | 100% | 0% |
| Polyester | 3.955 | 0.16 | 0% | 0% | 0% |
| Polyethylene (PE) | 0.972 | 0.04 | 100% | 100% | 0% |
| Polypropylene (PP) | 1.85 | 0.07 | 0% | 0% | 0% |
| Polyurethane solid (PUR) | 1.188 | 0.05 | 0% | 0% | 0% |
| Powder coating polyester | 7.313 | 0.29 | 0% | 0% | 0% |
| Powder Coating primer | 0.004 | 0 | |||
| Stainless steel | 385.312 | 15.16 | 0% | 0% | 0% |
| Stainless steel EN 1.4301 | 27.194 | 1.07 | 85% | 100% | 0% |
| Untreated Steel | 464 | 18.26 | 69% | 100% | 0% |
| Wet paint for wood | 4 | 0.16 | 0% | 0% | 0% |
| Zink (electro-galvanised) | 0.298 | 0.01 | 0% | 100% | 0% |
| Zink (hot-galvanised) | 18.05 | 0.71 | 70% | 100% | 0% |
| 2548 kg | 100% |
*Renewable % of the HPL core is made out of paper and is biodegradable
Recycled: Made from materials that have been processed and reused instead of discarded.
Recyclable: Can be collected, processed, and turned into new products instead of becoming waste.
Renewable: Comes from natural sources that can replenish over time such as sustainably harvested wood.
Transparency is key for HAGS. Our materials come from various suppliers, therefore the Recycled, Recyclable, and Renewable percentages are shown as the maximum possible values used in the materials. As we source more sustainable materials, these numbers will change.
