UnIPlay Koster
8116883

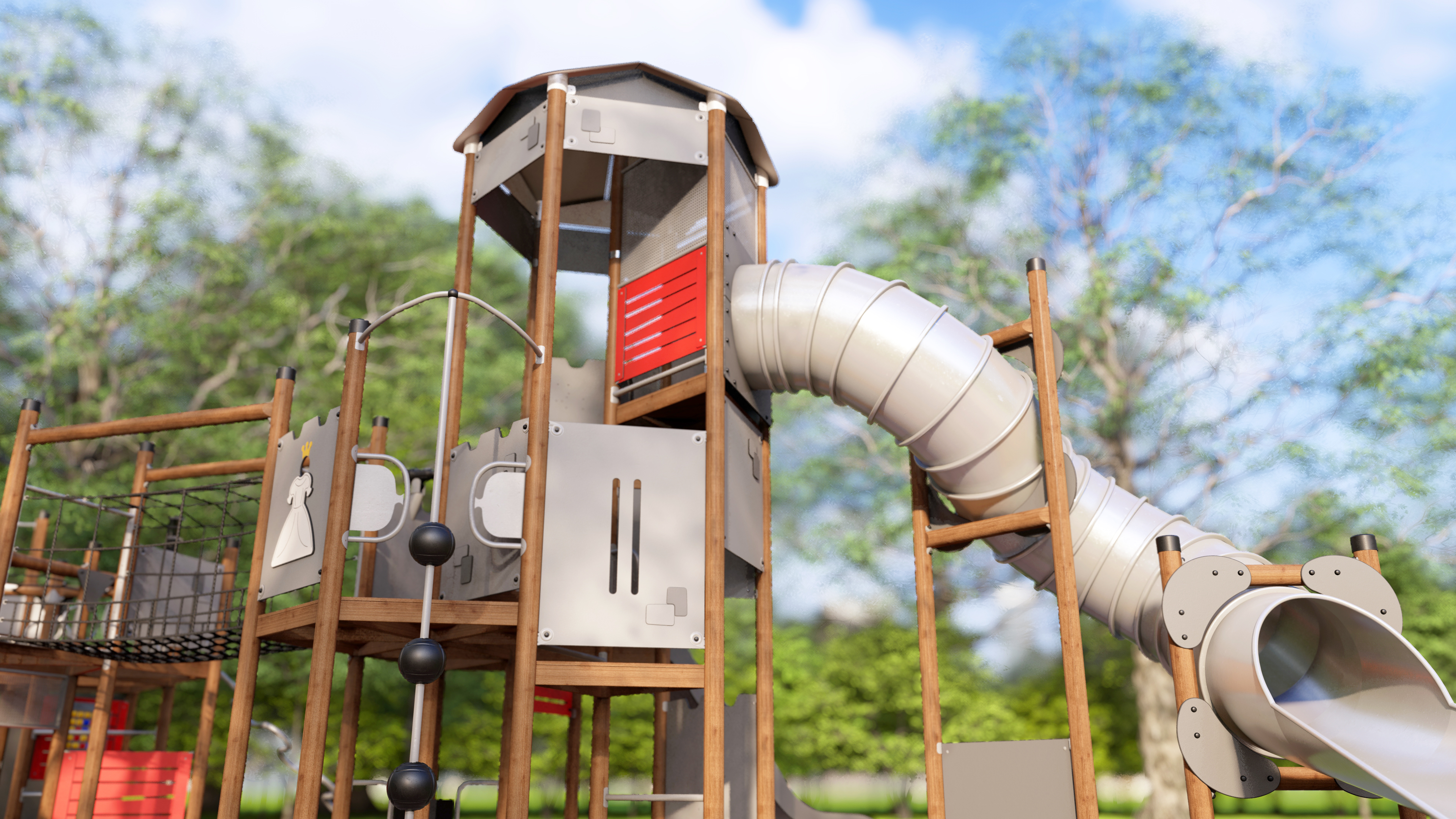

The UniPlay Koster is a fairytale castle themed playground unit designed for children aged 5 and up, featuring multiple interconnected towers and a large multi-level deck. Children can climb to the top and descend via a tube slide, enjoy a smaller slide, explore interactive play panels, and traverse an exciting net bridge connecting the decks. The unit also offers ground-level play areas for inclusive interaction. Themed playgrounds like UniPlay Koster inspire imaginative adventures, encourage social interaction, and develop motor skills, coordination, and teamwork, making it an ideal addition to schools, preschools, and community playgrounds. This variant has wooden posts, and sunken foundation anchoring.
Castle Theme
S
Anchoring
Sunken Foundation
Light Grey | Wooden Posts / HPL Panels | Wooden Post
- Significant challenge
- Multi-sensory
- Solitary Play
Physical
-
Spinning and Rolling
-
Sliding
-
Climbing
-
Crawling
-
Balancing
-
Jumping / Bouncing
-
Walking and running
-
Hanging
(from the arms) -
Pointing and touching
Social
-
Cooperating
-
Sharing
-
Communicating
-
Turn-taking
-
Competing
Cognitive
-
Playing with mathematical concepts
-
Problem solving
-
Concentrating
-
Planning / Tactics
Creative
-
Imagining / Storytelling
| Number of users | 55 |
| Age Range | 5-12 |
| Assembly Time | 137 hours |
| Length | 12000 mm |
| Width | 6700 mm |
| Height | 5380 mm |
| Net Weight | 2 444,66 kg |
| Fall Height | 2800 mm |
| Safety Area Width | 10500 mm |
| Safety Area Length | 14800 mm |
| Safety Area | 98 m² |
| Material | kg | % | Recycled | Recyclable | Renewable |
|---|---|---|---|---|---|
| Aluminum | 28.807 | 0.93 | 0%* | 100% | 0% |
| Cardboard | 0.91 | 0.03 | 100% | 100% | 100% |
| Cast iron | 0.04 | 0 | 10% | 100% | 0% |
| Concrete | 540.58 | 17.37 | 0% | 0% | 0% |
| Glass | 2.05 | 0.07 | 19% | 100% | 0% |
| HPL | 494.59 | 15.89 | 66% | 0% | 66%* |
| Pine | 742.908 | 23.87 | 0% | 100% | 100% |
| Plywood | 15.692 | 0.5 | 0% | 100% | 100% |
| Polyacetal (POM) | 0.18 | 0.01 | 10% | 100% | 0% |
| Polyamide (PA) | 12.783 | 0.41 | 0% | 100% | 0% |
| Polycarbonate (PC) | 0.493 | 0.02 | 0% | 100% | 0% |
| Polyester | 2.16 | 0.07 | 0% | 0% | 0% |
| Polyethylene (PE) | 6.586 | 0.21 | 100% | 100% | 0% |
| Polymethyl methacrylate (PMMA) | 0.176 | 0.01 | |||
| Polypropylene (PP) | 0.591 | 0.02 | 0% | 0% | 0% |
| Polyurethane foam/flex | 8.4 | 0.27 | 0% | 0% | 0% |
| Polyurethane solid (PUR) | 6.264 | 0.2 | 0% | 0% | 0% |
| Powder coating polyester | 11.054 | 0.36 | 0% | 0% | 0% |
| Stainless steel | 278.705 | 8.96 | 90% | 100% | 0% |
| Stainless steel EN 1.4301 | -58.323 | -1.87 | 85% | 100% | 0% |
| Thermo plastic elastomer (TPE) | 0.308 | 0.01 | 0% | 0% | 0% |
| Untreated Steel | 940.373 | 30.22 | 69% | 100% | 0% |
| Wet paint for wood | 55.031 | 1.77 | 0% | 0% | 0% |
| Zink (electro-galvanised) | 0.716 | 0.02 | 0% | 100% | 0% |
| Zink (hot-galvanised) | 20.7 | 0.67 | 70% | 100% | 0% |
| 3112 kg | 100% |
*We use REDUXA, a high‑quality, certified low‑carbon aluminum, produced using renewable energy (mainly hydro and wind power). Its carbon footprint is max 4.0 kg CO₂ per 1 kg of aluminum, which is about one‑quarter of the global average (approx. 16 kg CO₂ per 1 kg). It is produced using clean energy and modern, energy‑efficient technologies.
*Renewable % of the HPL core is made out of paper and is biodegradable
Aluminum
28.807 kg 0.93%
Recycled: 0%*
Recyclable: 100%
Renewable: 0%
*We use REDUXA, a high‑quality, certified low‑carbon aluminum, produced using renewable energy (mainly hydro and wind power). Its carbon footprint is max 4.0 kg CO₂ per 1 kg of aluminum, which is about one‑quarter of the global average (approx. 16 kg CO₂ per 1 kg). It is produced using clean energy and modern, energy‑efficient technologies.
Cardboard
0.91 kg 0.03%
Recycled: 100%
Recyclable: 100%
Renewable: 100%
Cast iron
0.04 kg 0%
Recycled: 10%
Recyclable: 100%
Renewable: 0%
Concrete
540.58 kg 17.37%
Recycled: 0%
Recyclable: 0%
Renewable: 0%
Glass
2.05 kg 0.07%
Recycled: 19%
Recyclable: 100%
Renewable: 0%
HPL
494.59 kg 15.89%
Recycled: 66%
Recyclable: 0%
Renewable: 66%*
*Renewable % of the HPL core is made out of paper and is biodegradable
Pine
742.908 kg 23.87%
Recycled: 0%
Recyclable: 100%
Renewable: 100%
Plywood
15.692 kg 0.5%
Recycled: 0%
Recyclable: 100%
Renewable: 100%
Polyacetal (POM)
0.18 kg 0.01%
Recycled: 10%
Recyclable: 100%
Renewable: 0%
Polyamide (PA)
12.783 kg 0.41%
Recycled: 0%
Recyclable: 100%
Renewable: 0%
Polycarbonate (PC)
0.493 kg 0.02%
Recycled: 0%
Recyclable: 100%
Renewable: 0%
Polyester
2.16 kg 0.07%
Recycled: 0%
Recyclable: 0%
Renewable: 0%
Polyethylene (PE)
6.586 kg 0.21%
Recycled: 100%
Recyclable: 100%
Renewable: 0%
Polymethyl methacrylate (PMMA)
0.176 kg 0.01%
Polypropylene (PP)
0.591 kg 0.02%
Recycled: 0%
Recyclable: 0%
Renewable: 0%
Polyurethane foam/flex
8.4 kg 0.27%
Recycled: 0%
Recyclable: 0%
Renewable: 0%
Polyurethane solid (PUR)
6.264 kg 0.2%
Recycled: 0%
Recyclable: 0%
Renewable: 0%
Powder coating polyester
11.054 kg 0.36%
Recycled: 0%
Recyclable: 0%
Renewable: 0%
Stainless steel
278.705 kg 8.96%
Recycled: 90%
Recyclable: 100%
Renewable: 0%
Stainless steel EN 1.4301
-58.323 kg -1.87%
Recycled: 85%
Recyclable: 100%
Renewable: 0%
Thermo plastic elastomer (TPE)
0.308 kg 0.01%
Recycled: 0%
Recyclable: 0%
Renewable: 0%
Untreated Steel
940.373 kg 30.22%
Recycled: 69%
Recyclable: 100%
Renewable: 0%
Wet paint for wood
55.031 kg 1.77%
Recycled: 0%
Recyclable: 0%
Renewable: 0%
Zink (electro-galvanised)
0.716 kg 0.02%
Recycled: 0%
Recyclable: 100%
Renewable: 0%
Zink (hot-galvanised)
20.7 kg 0.67%
Recycled: 70%
Recyclable: 100%
Renewable: 0%
Total: 3112 kg
Recycled: Made from materials that have been processed and reused instead of discarded.
Recyclable: Can be collected, processed, and turned into new products instead of becoming waste.
Renewable: Comes from natural sources that can replenish over time such as sustainably harvested wood.
Transparency is key for HAGS. Our materials come from various suppliers, therefore the Recycled, Recyclable, and Renewable percentages are shown as the maximum possible values used in the materials. As we source more sustainable materials, these numbers will change.
