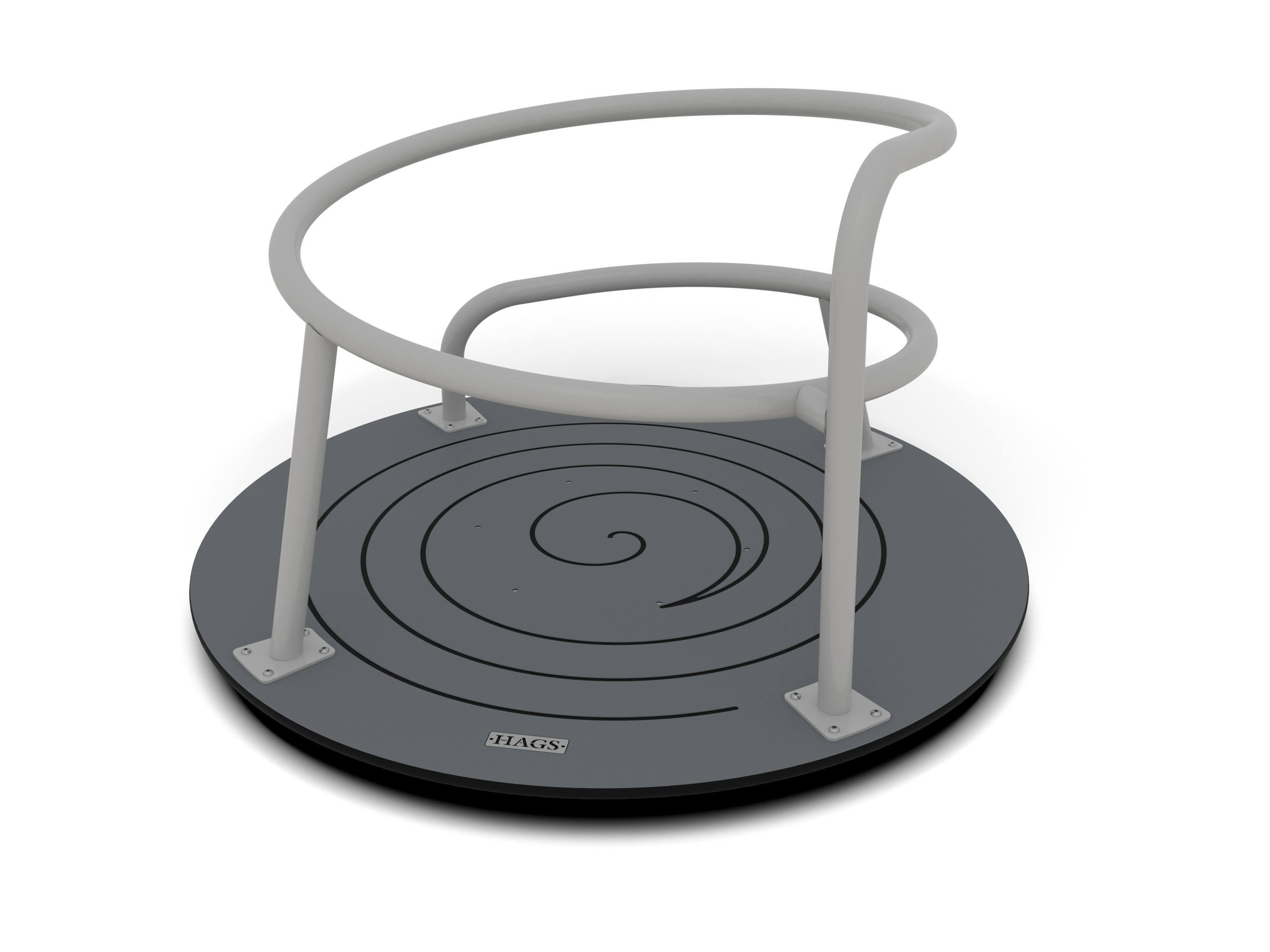

Spiral
8089126

Grey – Cast In Place

5300 x 5300
-
5-12
-
4
-
1000
-
22
- Age Range: 5-12
- Assembly Time: 4 hours
- Length (mm): 1270 mm
- Width (mm): 1270 mm

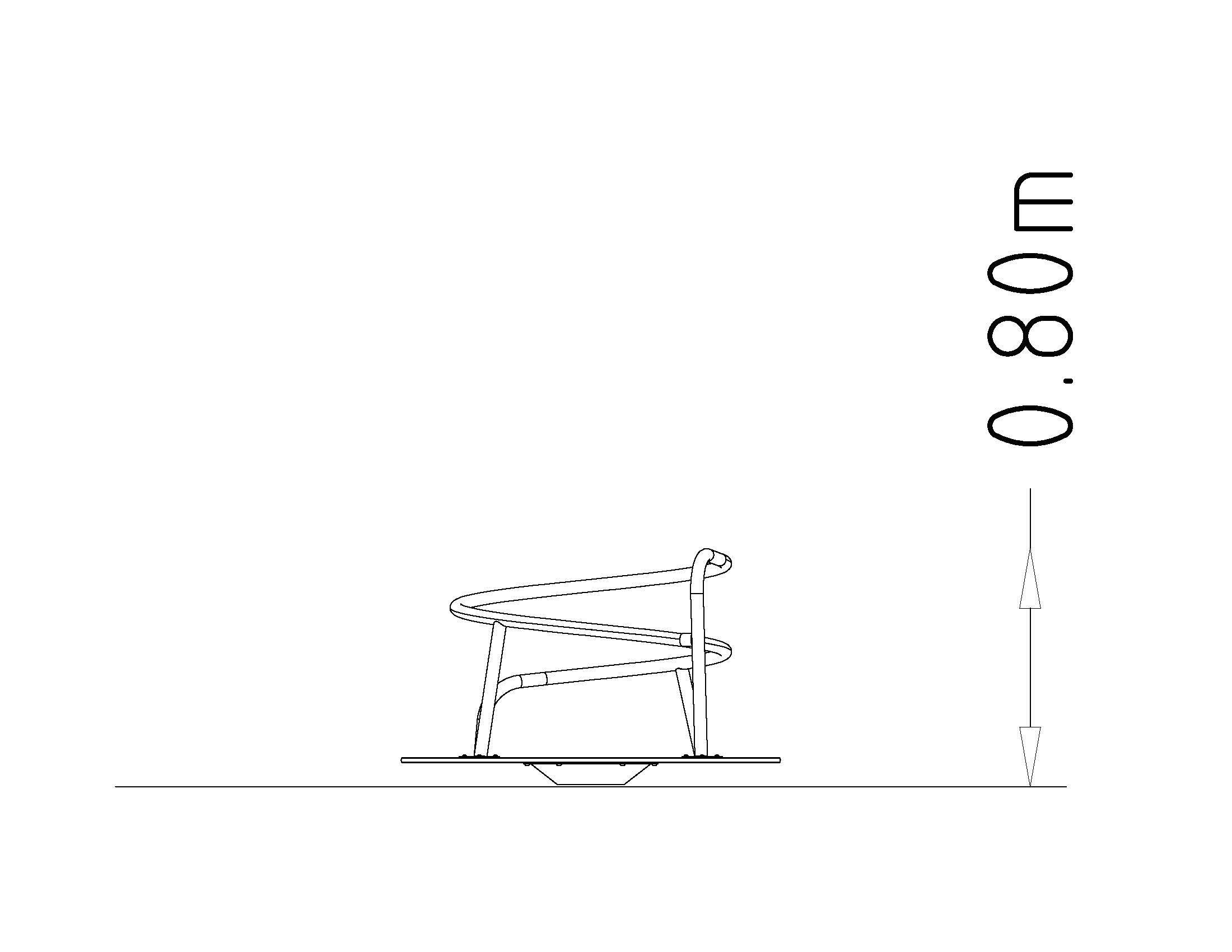

- Height (mm): 800 mm
- Net Weight: 97,00 kg
- Volume (m3): 1.5 m³
- Fall Height (mm): 1000 mm

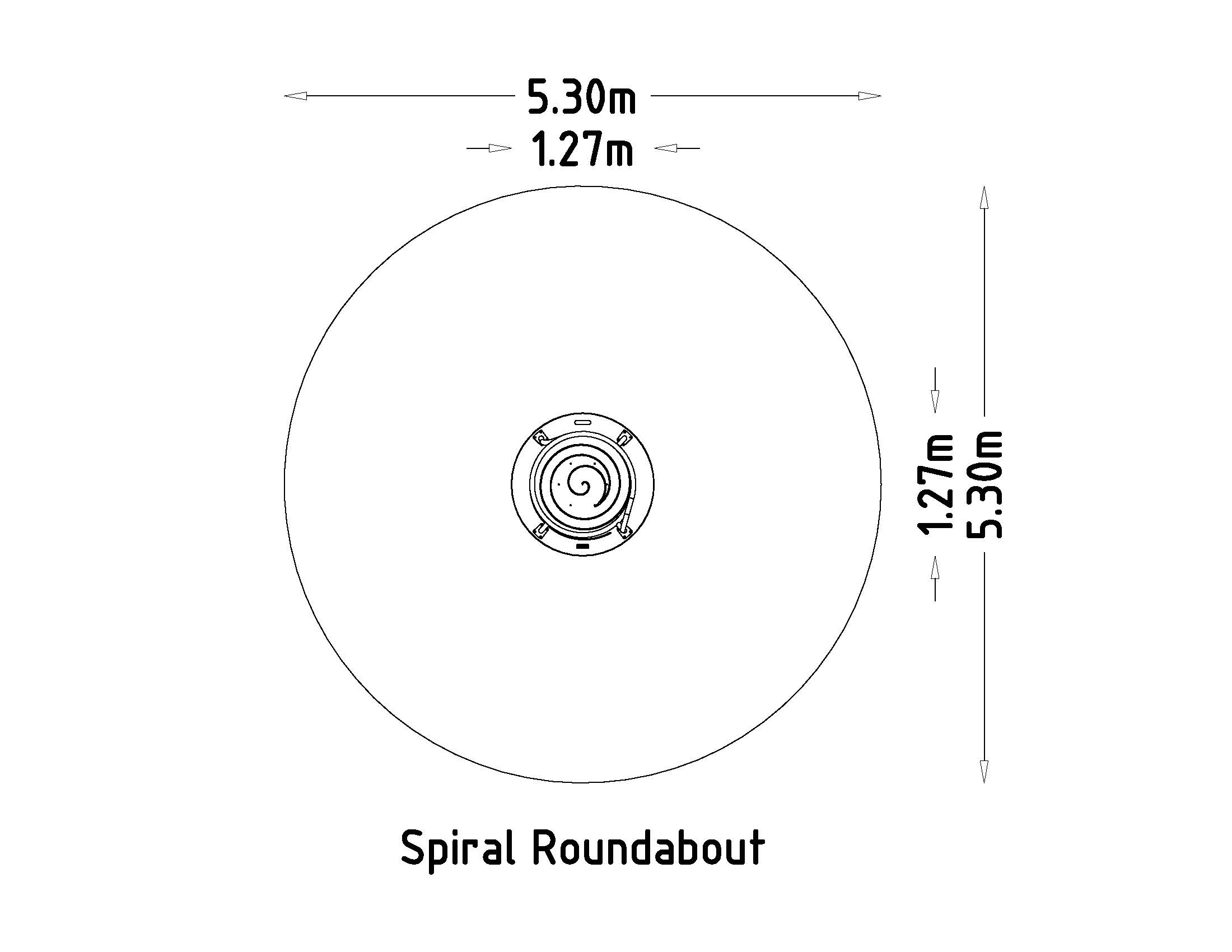

- Safety Area Width (mm): 5300 mm
- Safety Area Length (mm): 5300 mm
- Safety Area : 22 m²
Material | kg | % |
---|---|---|
Polyethylene (PE) | 0 | 0 |
Powder coating polyester | 1.1 | 0.8 |
Stainless steel | 99.2 | 69.3 |
Stainless steel EN 1.4301 | 0 | 0 |
Untreated Steel | 42.6 | 29.8 |
Zink (electro-galvanised) | 0 | 0 |
Zink (hot-galvanised) | 0.2 | 0.2 |
143 kg | 100% |
Certificates
-
DE_Carousel_Z2_022757_1117_Rev.00.pdf
-
ES_Carousel_Z2_22757_1048_Rev.00.pdf
-
FR_Carousel_Z2_22757_1048_Rev.00.pdf
-
GB_Carousel_Z2_022757_1117_Rev.00.pdf
Installation Guides
Download Installation GuidesInspection & Maintenance
-
Park and Urban I&M Guide_EN.pdf
-
Playground Equipment I&M guide_EN.pdf
-
Sports and fitness I&M guide_EN.pdf
DWG Files
General Information
Printed

Add to my Collection?
Fill your basket with products by clicking "Add to my collection" so that you can create and print your own custom brochure, download the files you need for all the products in one go, or to request a quote.
Call a member of our team on: +46 380 473 00 or use our Contact Form
Values
-
Balancing
-
Co-ordination
-
Crawling
-
Spinning
