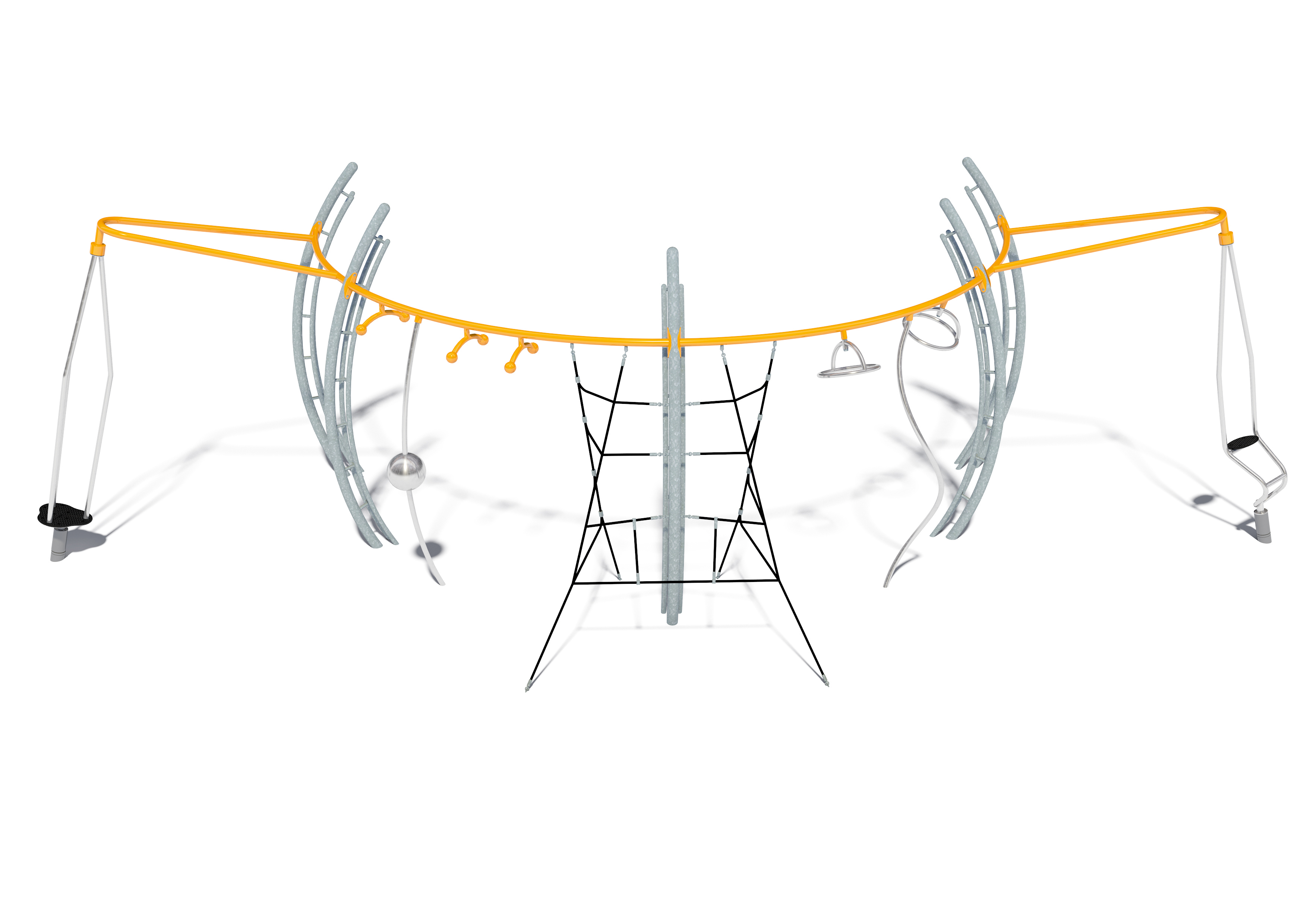

Nexus Velocity 4
8019724

Yellow – Cast In Place

14700 x 7410
-
7-16
-
60
-
2500
-
76
- Age Range: 7-16
- Assembly Time: 60 hours
- Length (mm): 10620 mm
- Width (mm): 3830 mm
- Height (mm): 3000 mm
- Net Weight: 671,00 kg
- Volume (m3): 14.45 m³
- Fall Height (mm): 2500 mm

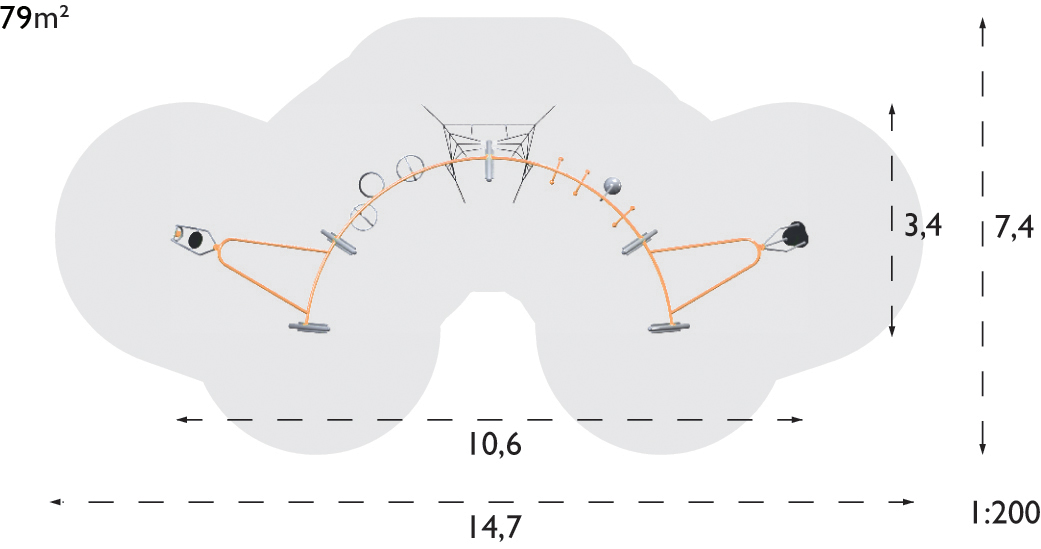

- Safety Area Width (mm): 14700 mm
- Safety Area Length (mm): 7410 mm
- Safety Area : 76 m²
Material | kg | % |
---|---|---|
Untreated Steel | 437.3 | 65.2 |
Stainless steel | 137.9 | 20.6 |
Aluminum | 1.9 | 0.3 |
Zink (hot-galvanised) | 80 | 11.9 |
Polyamide (PA) | 0.1 | 0 |
Polyethylene (PE) | 5.4 | 0.8 |
Nylon rope, Glued braided, 18mm (18BN-FC) | 6.1 | 0.9 |
Powder coating polyester | 0.8 | 0.1 |
Powder Coating primer | 0.8 | 0.1 |
Rubber | 0.6 | 0.1 |
671 kg | 100% |
Certificates
Installation Guides
-
8019724_HAGS_Inspection_and_Maintenance_Procedure.pdf
-
8019724_HAGS_Inspection_and_Maintenance_Procedure_Apr11_DE.pdf
-
8019724_HAGS_Inspection_and_Maintenance_Procedure_Apr11_ES.pdf
-
8019724_HAGS_Inspection_and_Maintenance_Procedure_Apr11_FR.pdf
-
8019724_HAGS_Inspection_and_Maintenance_Procedure_Apr11_IT.pdf
-
8019724_HAGS_Inspection_and_Maintenance_Procedure_Apr11_SV.pdf
-
8019724_NEXUS_VELOCITY4_HAGS_ISSUE_D.pdf
Inspection & Maintenance
-
Park and Urban I&M Guide_EN.pdf
-
Playground Equipment I&M guide_EN.pdf
-
Sports and fitness I&M guide_EN.pdf
DWG Files
General Information
Printed

Add to my Collection?
Fill your basket with products by clicking "Add to my collection" so that you can create and print your own custom brochure, download the files you need for all the products in one go, or to request a quote.
Call a member of our team on: +46 380 473 00 or use our Contact Form
Values
-
Climbing
-
Co-ordination
-
Hanging
-
Multi-Generational
-
Sliding
-
Social Play
